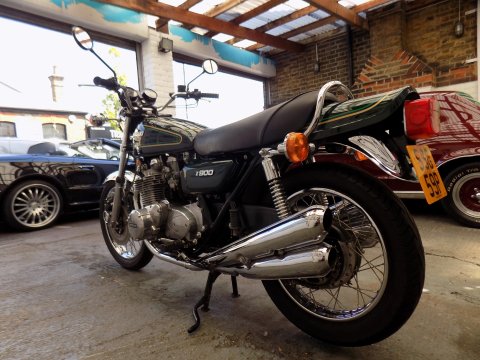

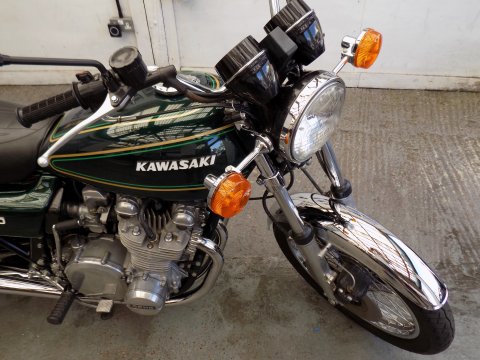

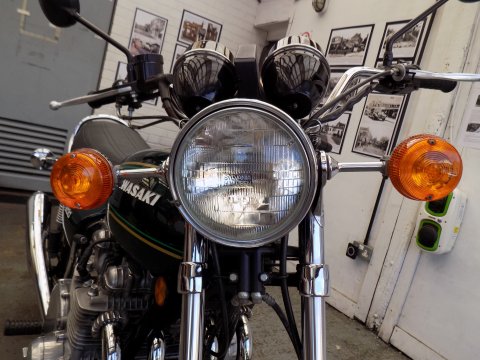

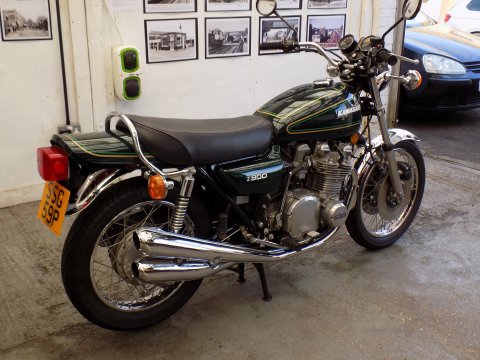

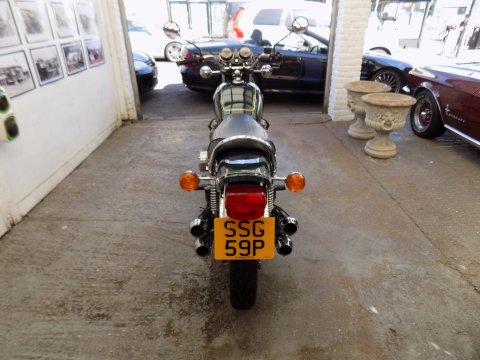

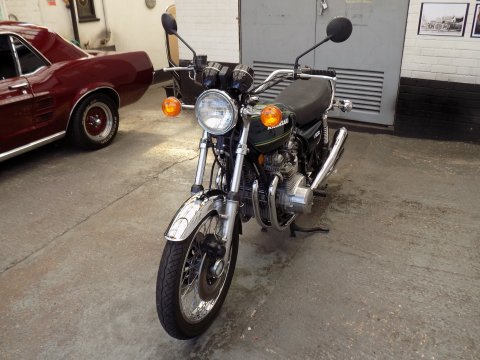

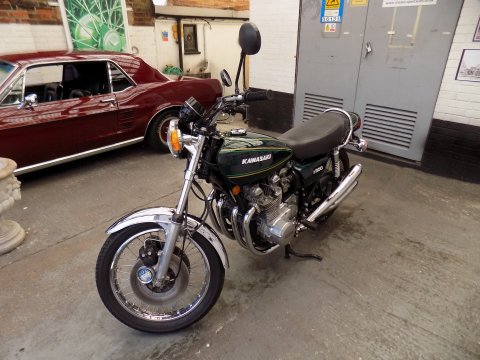

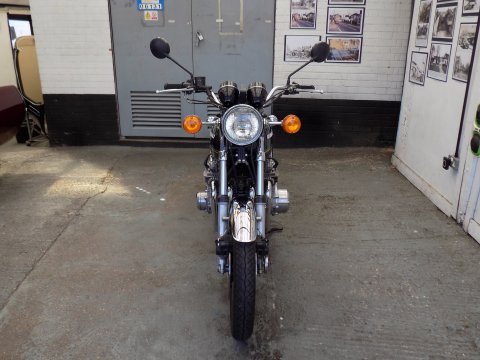

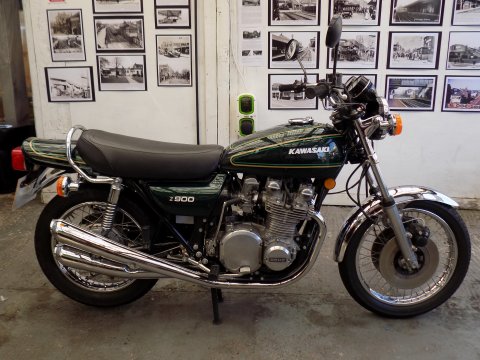

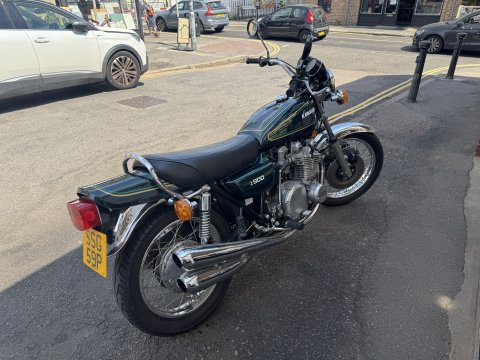

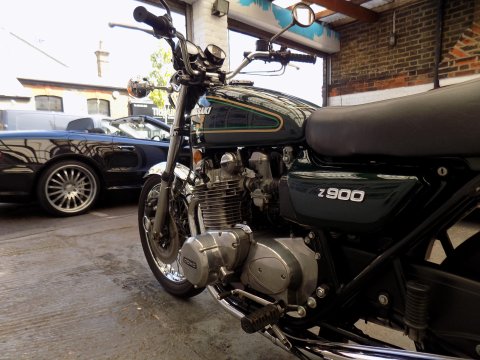

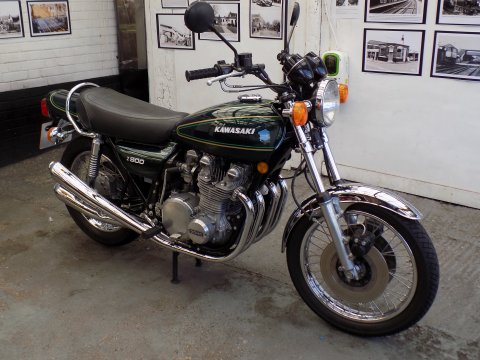

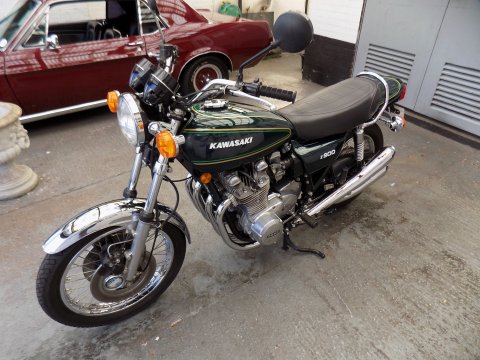

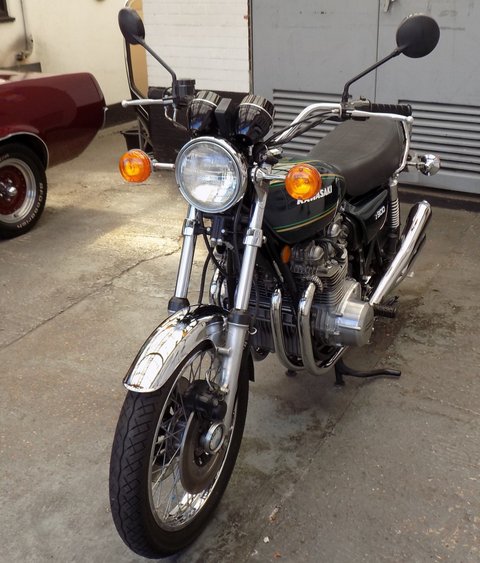

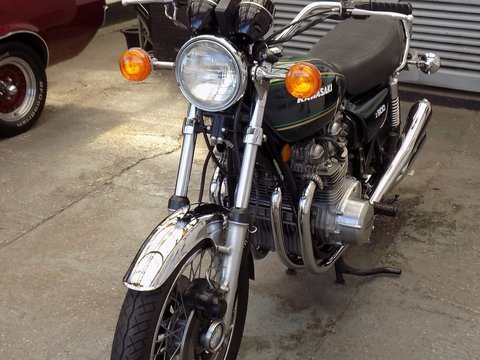

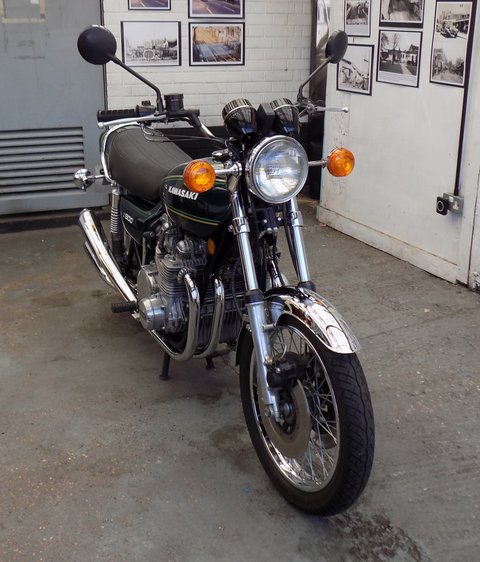

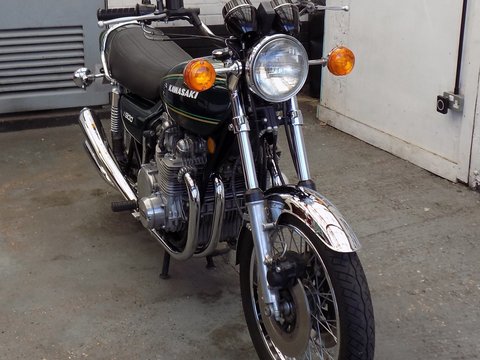

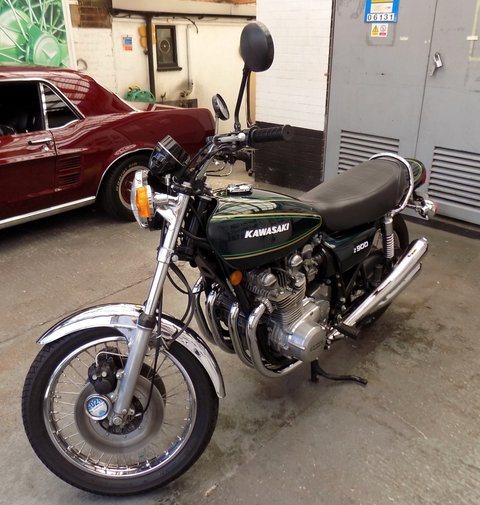

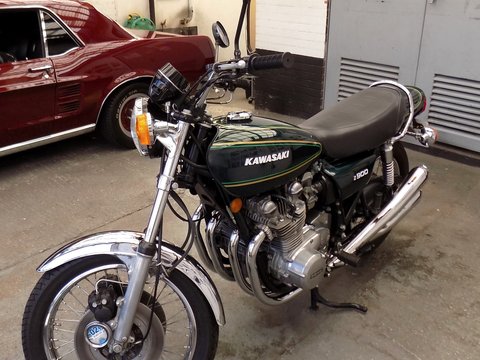

About this Kawasaki Z900

The 1976 Kawasaki Z900 (commonly known as the KZ900 or KZ900-A4 in North America) featured a 903cc air-cooled DOHC transverse inline-four engine delivering 81 horsepower and a top speed of 120 mph.

This Classic Superbike was built upon the legendary legacy of the original Kawasaki Z1, but introducing key refinements to the braking and electrical systems.

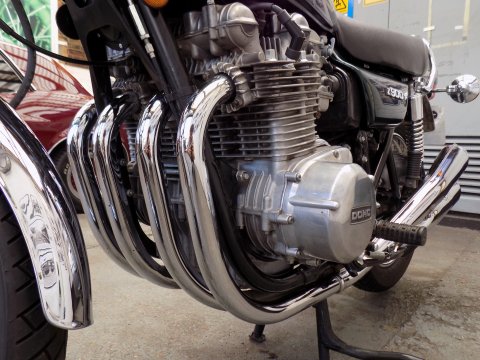

Engine & Performance

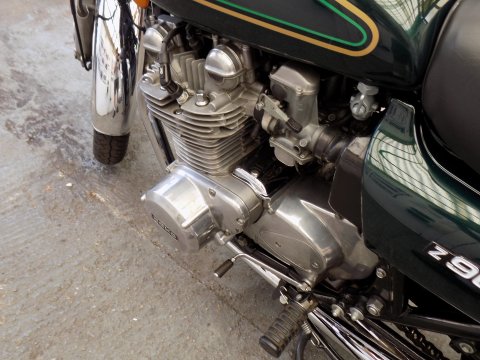

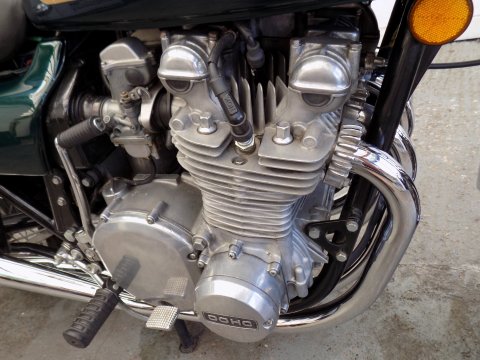

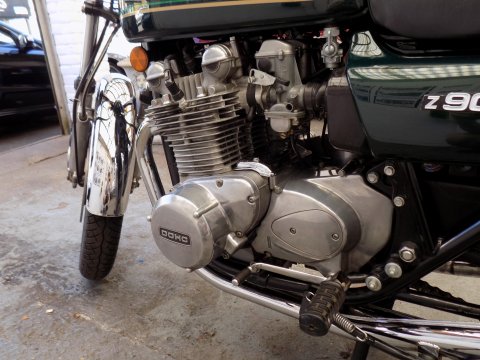

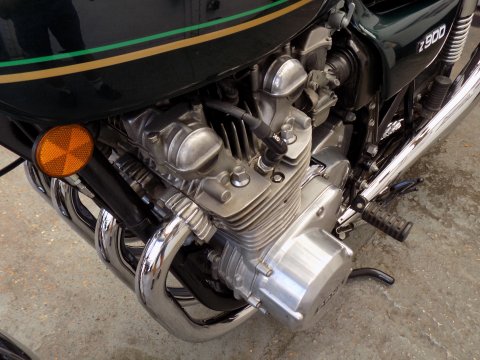

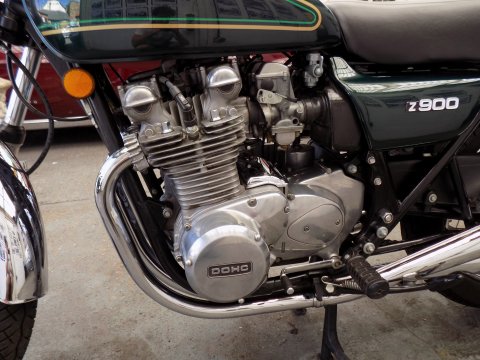

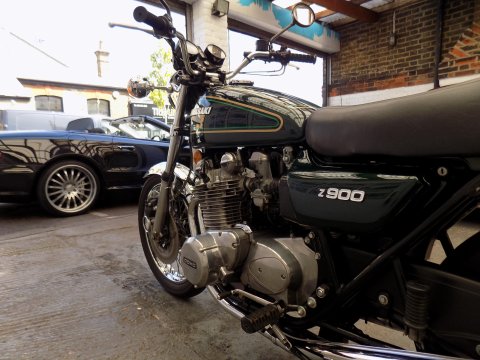

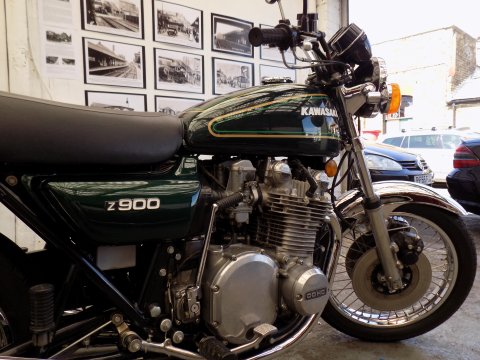

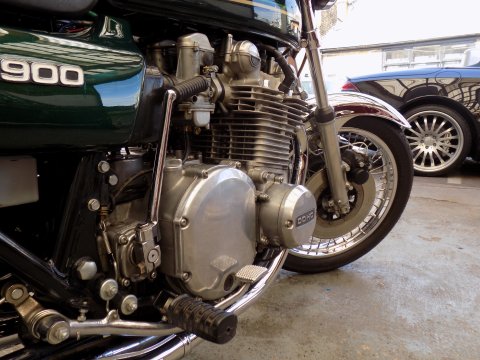

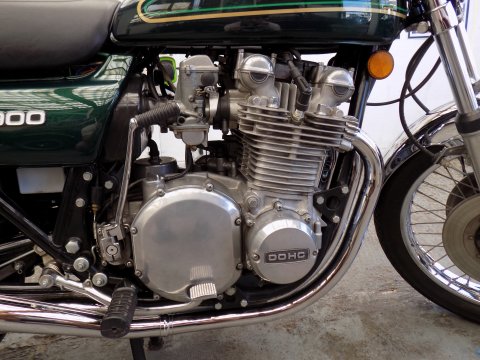

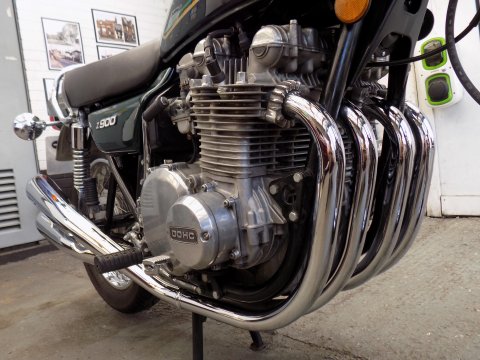

Engine Type: Air-cooled, 4-stroke, transverse inline-4, DOHCDisplacement: 903 cc (55.1 cubic inches) Bore x Stroke: 66 mm x 66 mmCompression Ratio: 8.5:1

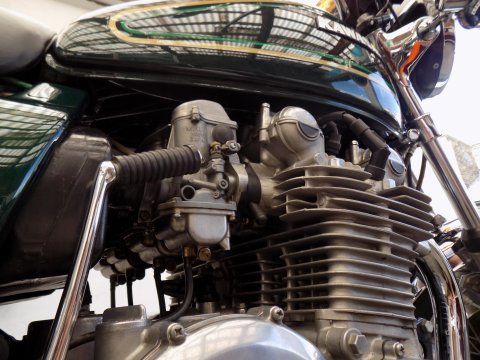

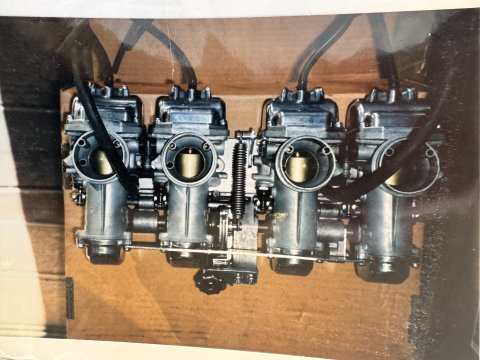

Fuel System: 4x 26mm Mikuni VM26SS carburetors

Maximum Power: 81 hp (60 kW) @ 8,500 rpm

Maximum Torque: 73.5 Nm (52.8 lb-ft) @ 7,000 rpm

Top Speed: 120 mph (193 km/h)0–60 mph Acceleration: 4.7–5.1 secondsStanding 1/4 Mile: 13.3–13.7 seconds

Drivetrain & Transmission

Transmission: 5-speed manual, return shiftClutch: Wet, multi-plate

Final Drive: Chain

Starting System: Electric with kickstart backup

Chassis, Suspension & Brakes

Frame: Double tubular steel cradleFront Suspension: 36mm telescopic forksRear

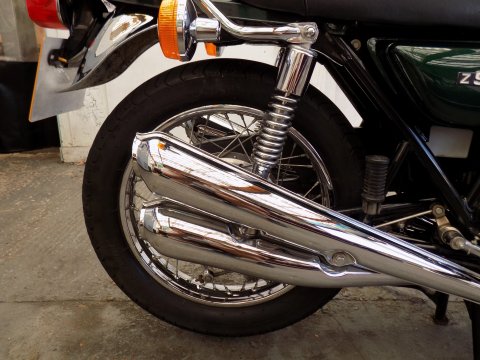

Suspension: Dual shock absorbers, 5-way preload adjustment

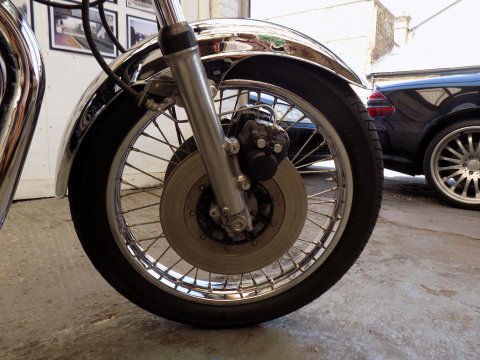

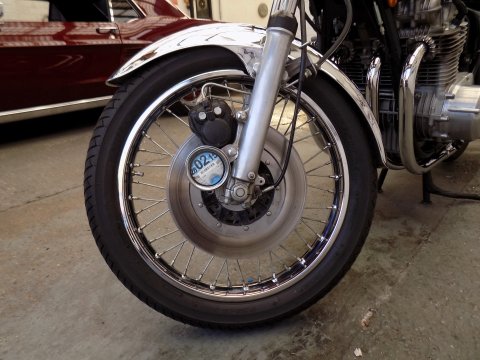

Front Brakes: Dual 296mm hydraulic discs (upgraded from the single disc on earlier models)

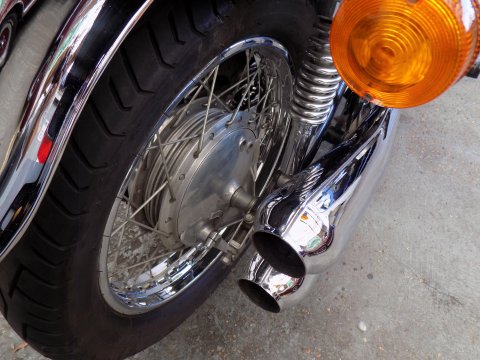

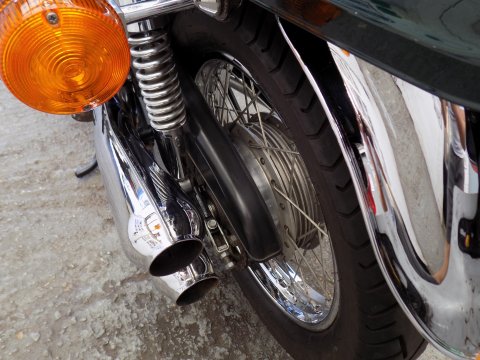

Rear Brakes: 200mm internal expanding drum brake

Front Tyre: 3.25H-19

Rear Tyre: 4.00S-18

Dimensions & Capacities

Dry Weight: 230 kg Wet Weight: 248 kg

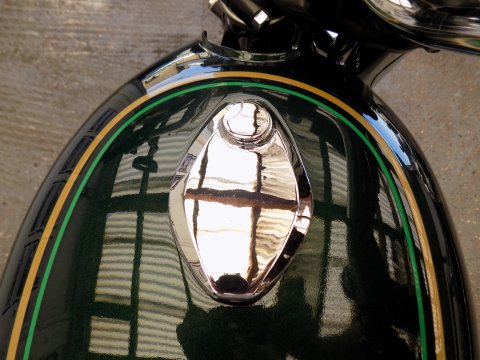

Fuel Capacity: 18 Litres

Wheelbase: 1,498 mm (59 inches)

Seat Height: 812 mm (32 inches)

Ground Clearance: 170 mm (6.75 inches)

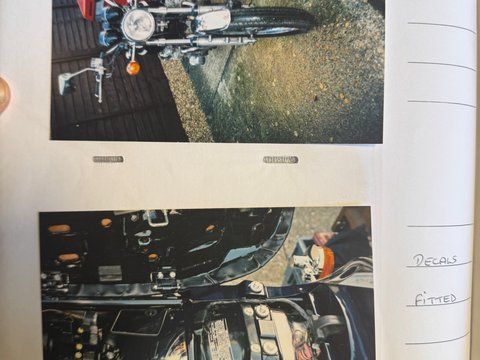

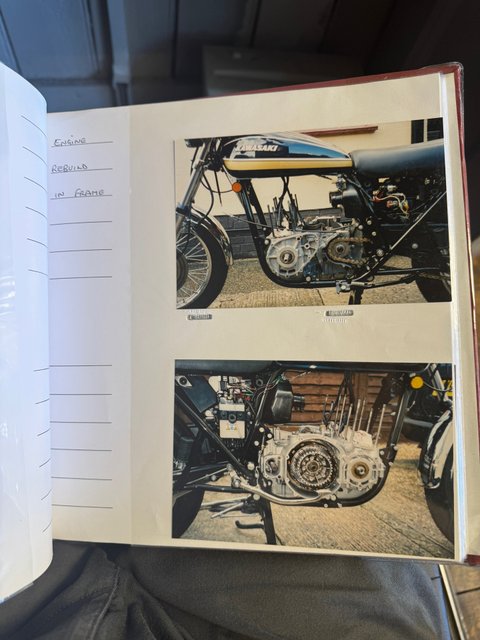

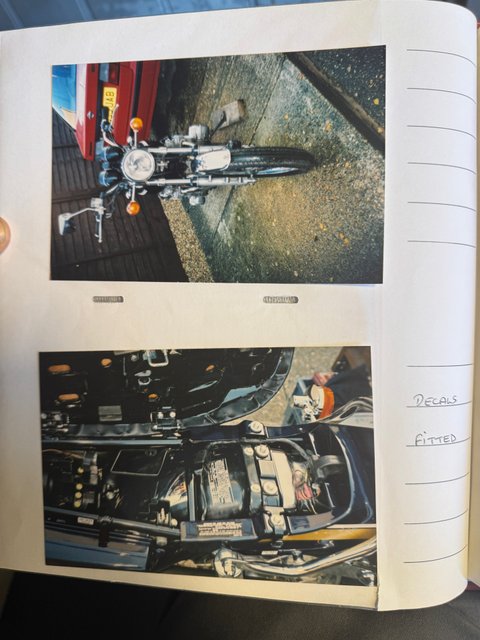

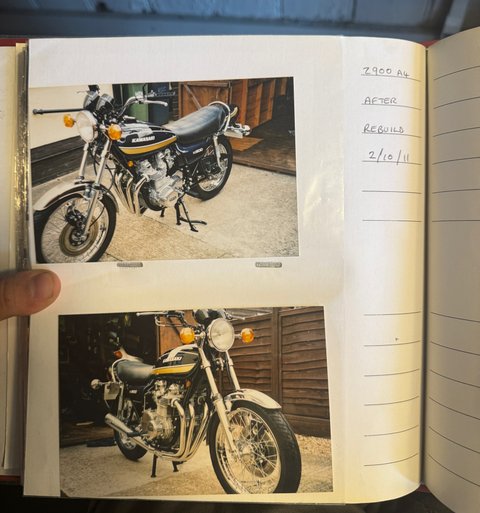

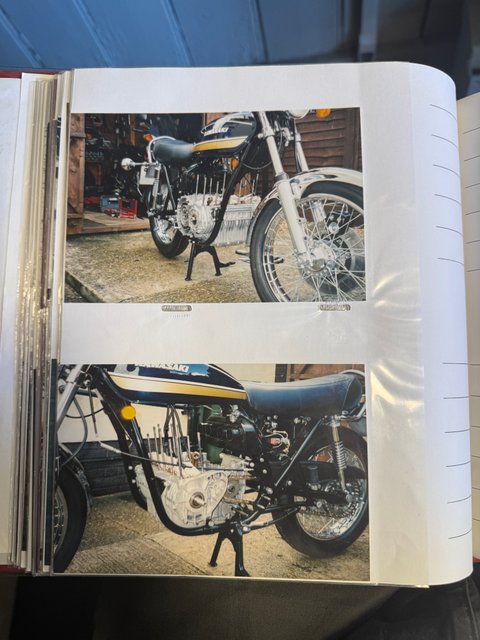

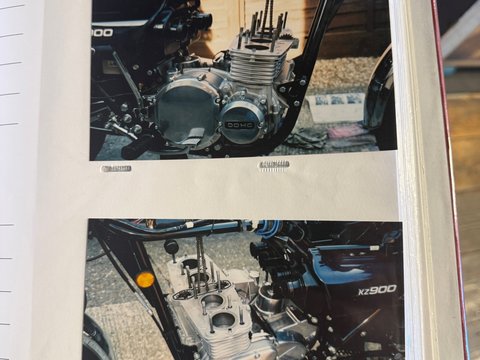

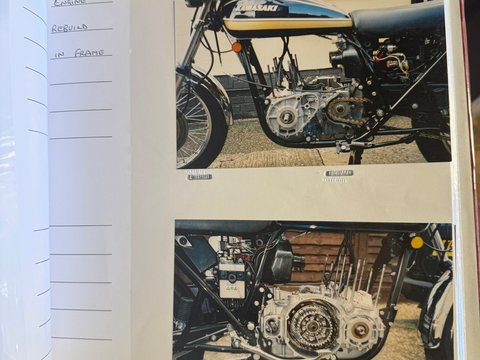

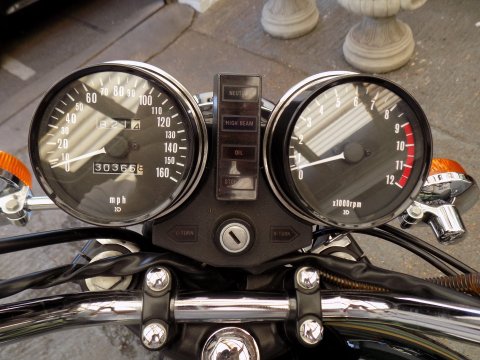

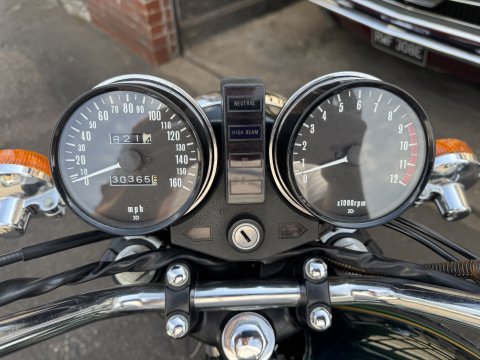

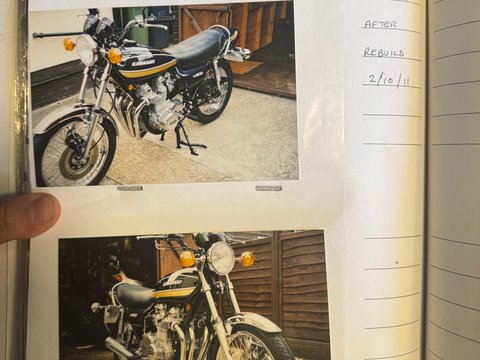

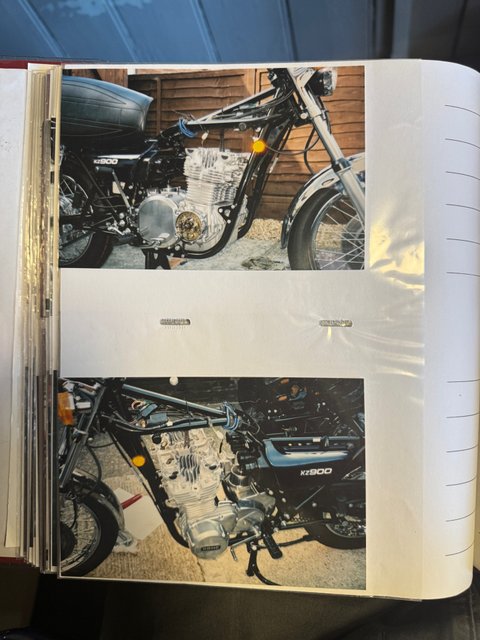

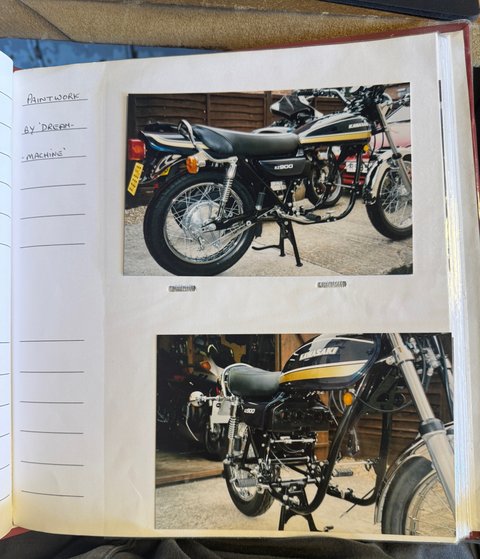

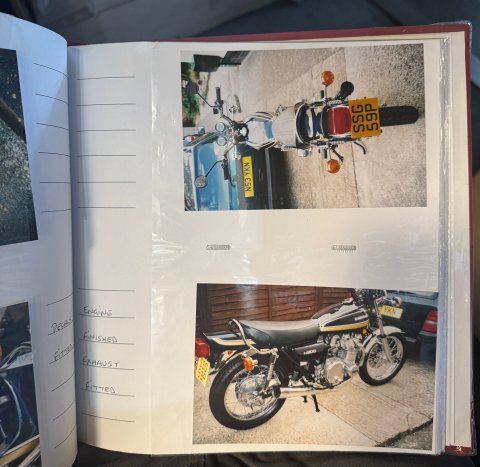

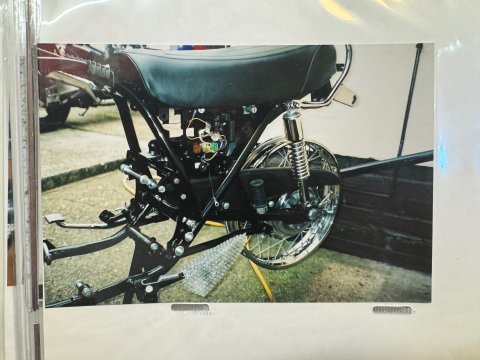

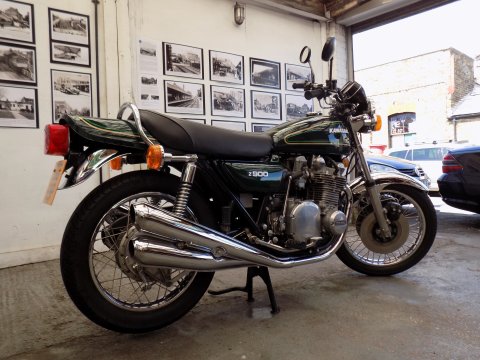

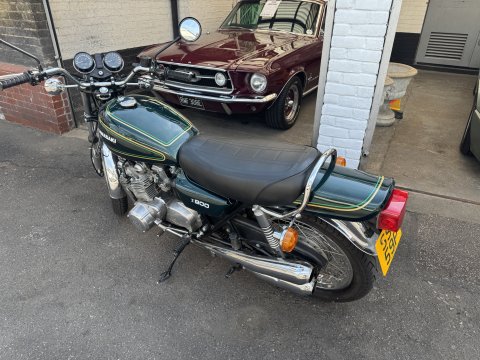

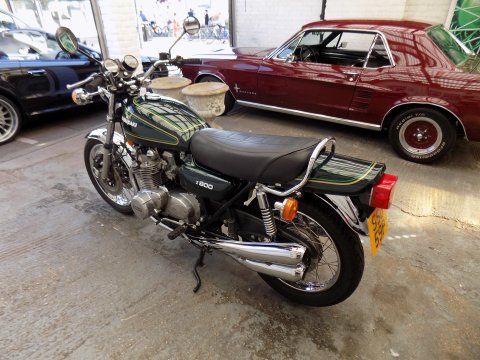

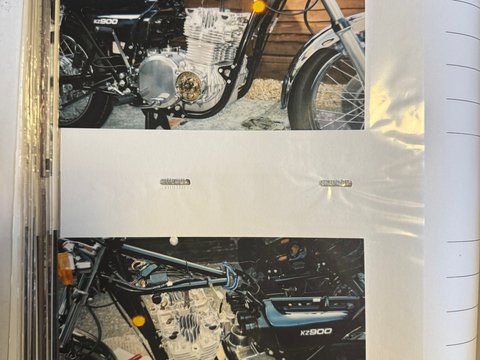

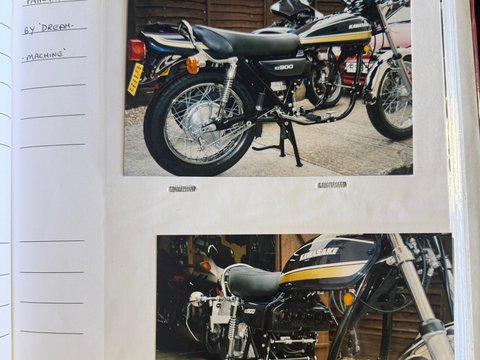

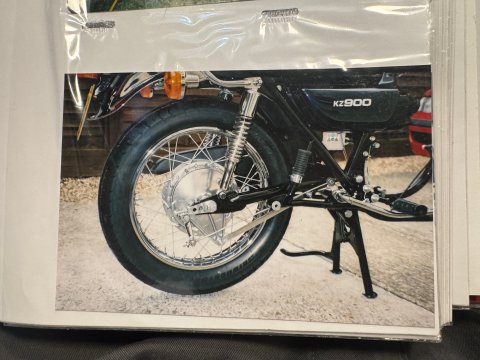

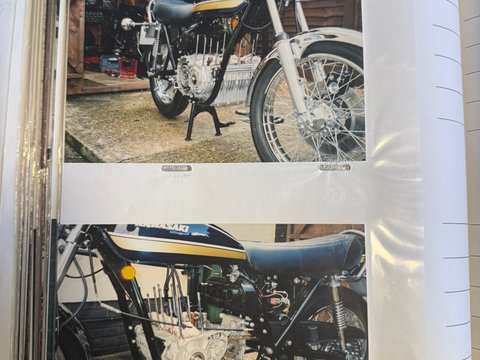

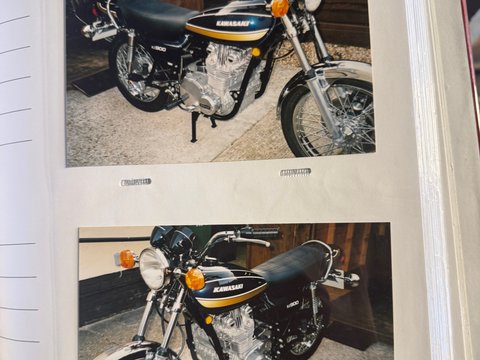

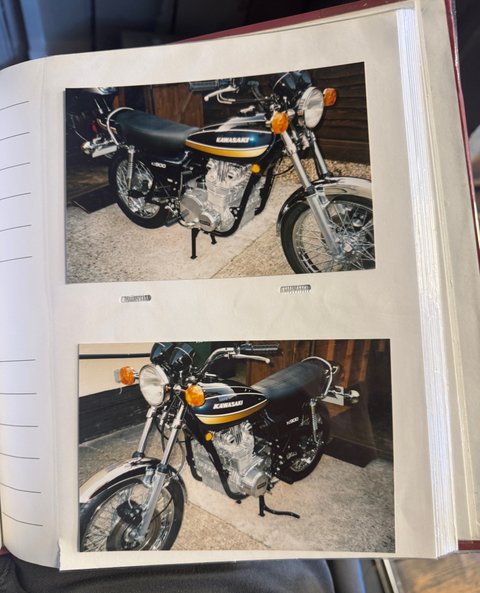

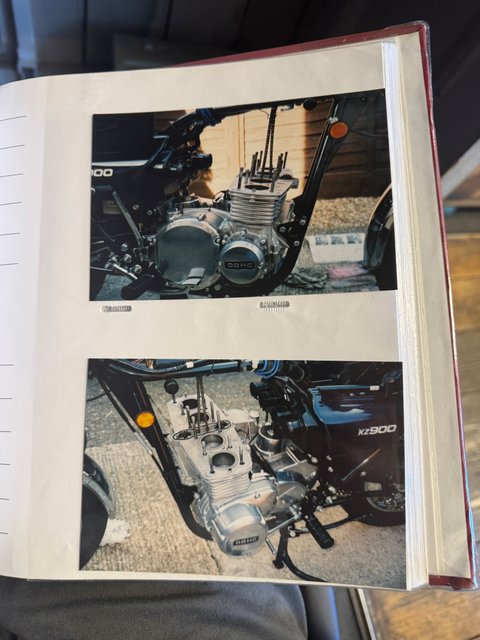

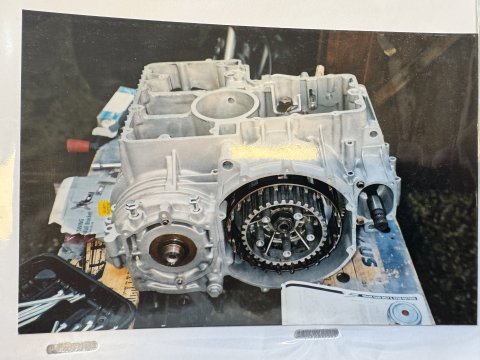

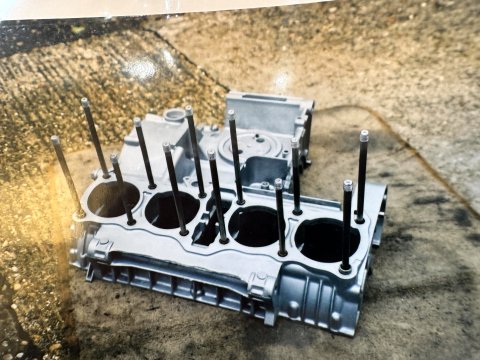

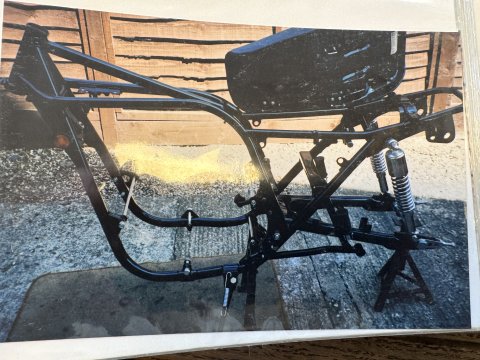

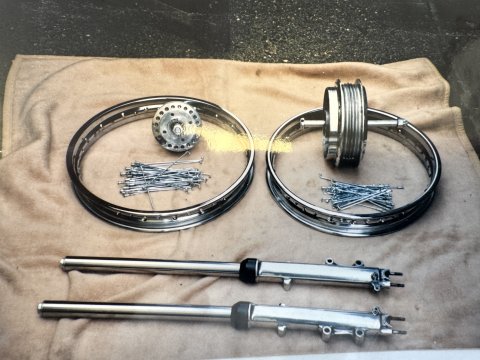

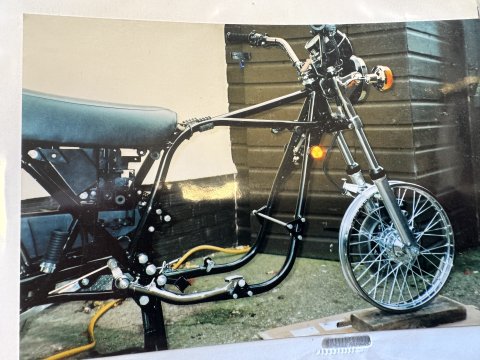

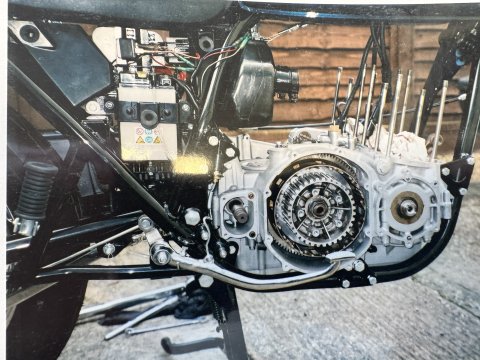

This example was originally registered in North America and came to the UK in 2005. In 2009 it underwent a fully photographed and complete nut & bolt rebuild and there is a photo album containing just over 100 photographs of the restoration which was finally completed in 2012. The mileage of the bike is a genuine 30,365 from new and it has covered 3,000 miles since it was rebuilt.

Full details to follow shortly.

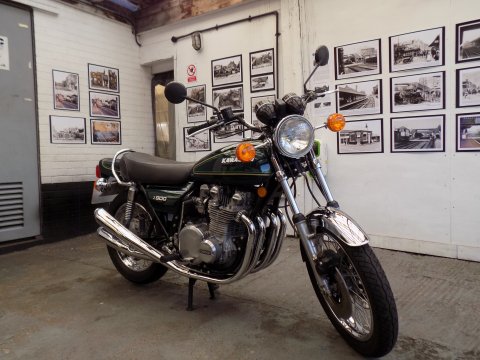

This bike is on display @ our showrooms in Mortlake, South West London.
